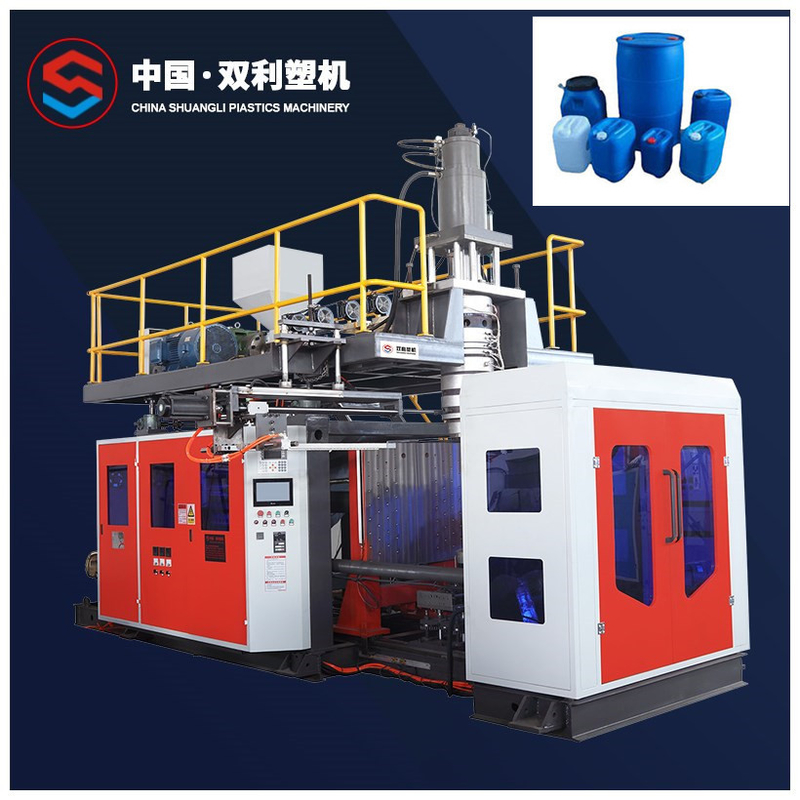

Chemical Barrel Accumulator Blow Moulding Machine ABS Single Station Molding

1 Die Head Accumulator Type Single Station Plastic Blow Molding Machine For Plastic Chemical Barrels

SLBC series: (German model)

linear guide support single frame, finite element analysis of the design, to ensure adequate clamping force, All parts of the machine is made by

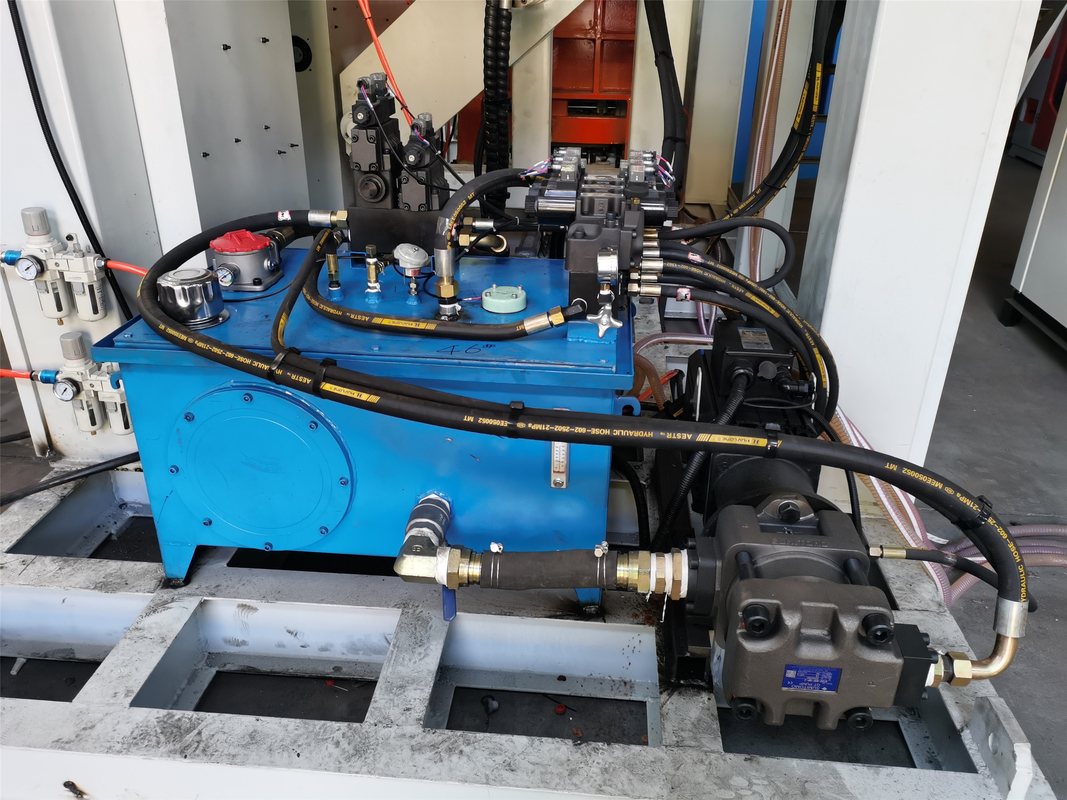

advanced numerical control equipment with high precision. And equipped with imported hydraulic, pneumatic and electrical parts of famous

brand, it has stable equipment performance and simple handling.ot up mode

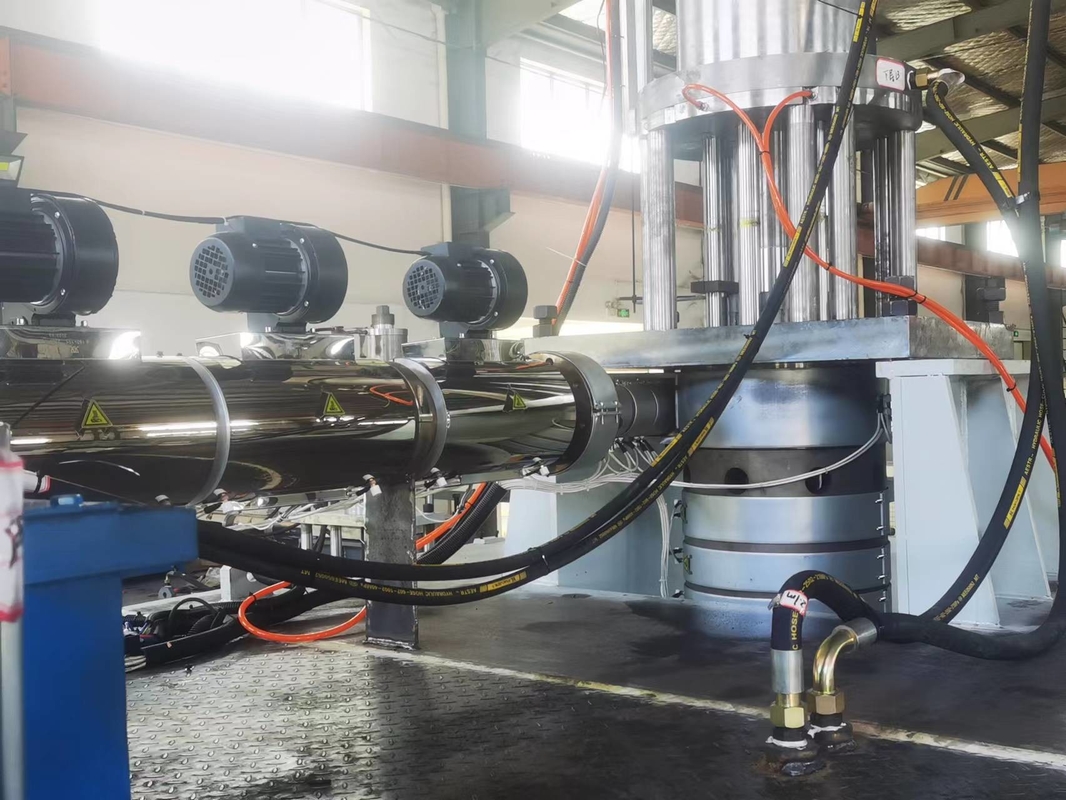

All this machine of single heads adopt the central feeding mode. The function is to change the melted plastic rods sent out by the extrusion screw

into tubular preforms for the clamping mechanism and the blowing device. The adjusting screw above the die is used for adjusting the axial wall

thickness of the corresponding glue tube, and the adjusting screw at the exit of the die is used for adjusting the radial wall thickness of the glue

tube. When the machine is heated, the internal pressure of the melted plastic is high, and the external electric heating is high. Please pay

attention to safety! Explosion-proof, anti-scalding!
