Toy Extrusion Blow Molding Machine High Speed 2l PET Bottle Machine
-
High Light
high speed Extrusion Blow Molding Machine
,toy Extrusion Blow Molding Machine
,2l PET Bottle Machine
-
MaterialPE,PP,EVA,ABS,PS
-
Max Capacity2L
-
StationDouble Or Single
-

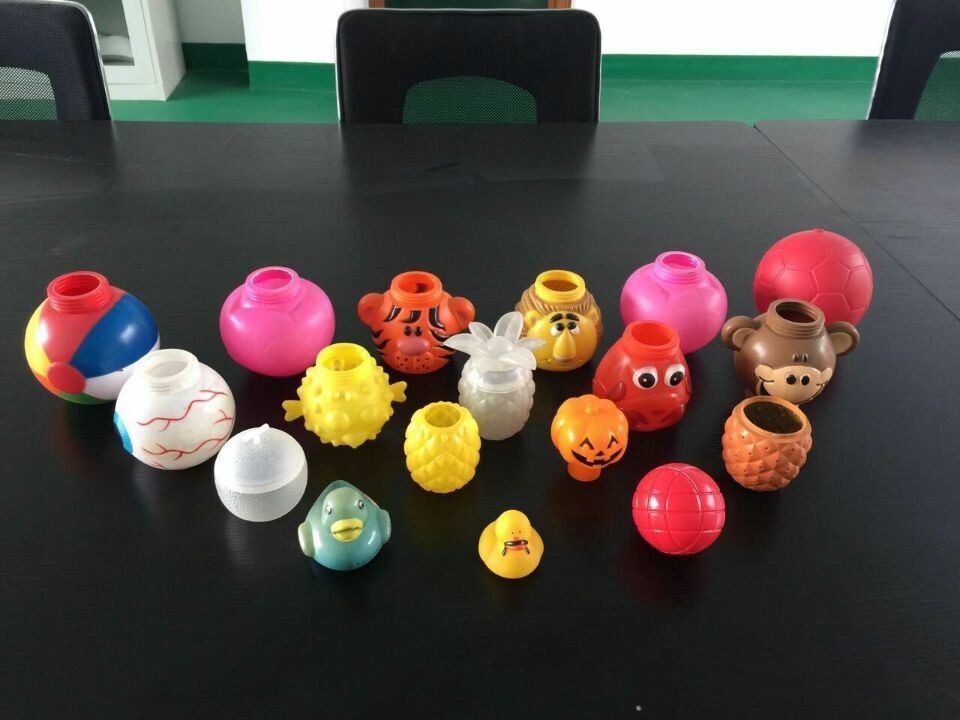

ProductPlastic Ball Toys
-
Die Head4 Heads
-
TypeK Series Tie Bar
-
Place of OriginCHINA
-
Brand NameSHUANGLI
-
CertificationISO, CE
-
Model NumberSLBK-55
-
Minimum Order Quantity1 SET
-
PricePrice negotiation.
-
Packaging DetailsStandard export package
-
Delivery Time20 woking day
-
Payment TermsL/C, T/T
-
Supply Ability100 Set per month

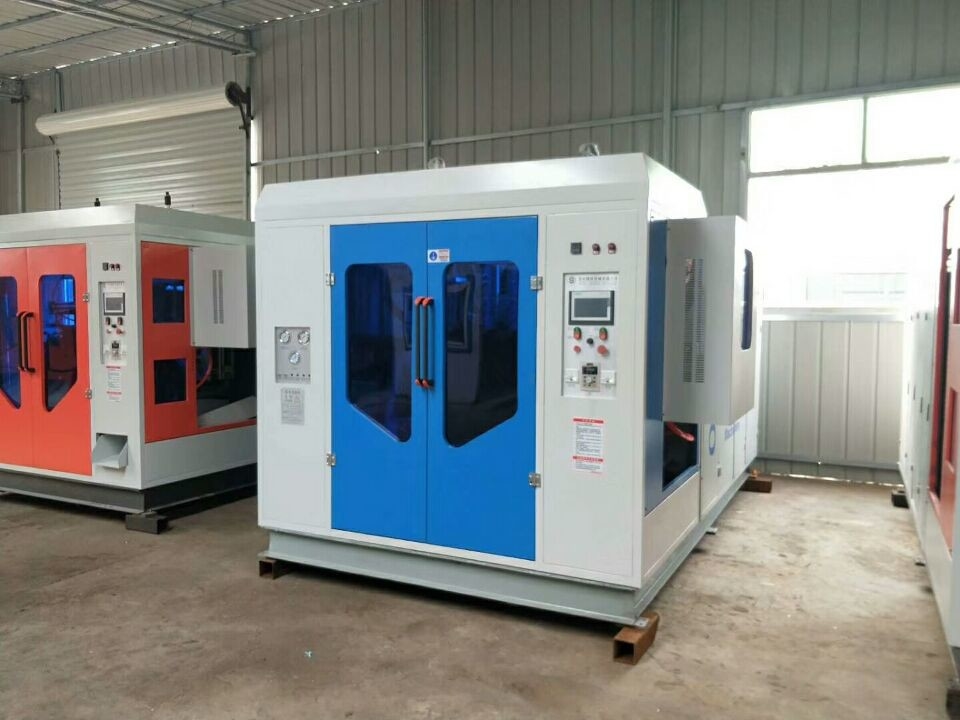

Toy Extrusion Blow Molding Machine High Speed 2l PET Bottle Machine

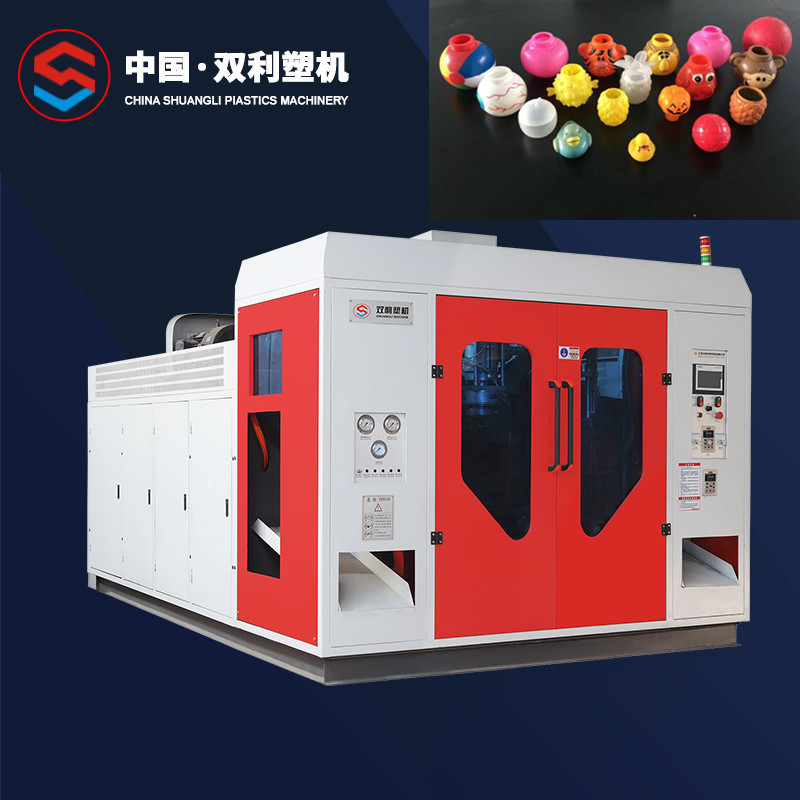

K Series Tie Bar High Speed 4 Die Head High Double Station Speed Blow Molding Machine For Plastic Ball Toys
The main purpose and applicant scope
1. SL series blow molding machine can produce a variety of blow molded hollow products such as bottles, pots, cans and barrels.
2. This machine is suitable for PP, PE (etc., whether it is imported or domestically produced) hollow blow molding.
3: the mold head mechanism: the use of the split type of the head, not channeling material, more uniform, more uniform, plating processing, not accumulating material, the material is more smooth.
4 plasticizing system: frequency conversion motor Hardened reducer with high quality nitride barrel screw, variable frequency speed control, energy efficient and stable yield.application areas: food, medicine, petroleum, chemical, chemical, automotive, tools, toys and other industries.
| SPECIFICATION | SLBK-55 | |
| MATERIAL | PE,PP,EVA,ABS,PS | |
| MAX CONTAINER CAPACITY | L | 2 |
| NUMBER OF DIE HEAD | SET | 1,2,3,4,6 |
| OUPUT(DRY CYCLE) | PC/HR | 1000x2 |
| MACHINE DIMENSION (LxWxH ) | MM | 3400x2200x2200 |
| TOTAL WEIGHT | TON | 5T |
| CLAMPING UNIT | ||
| CLAMPING FORCE | KN | 40 |
| PLATEN OPENING STROKE | MM | 120-400 |
| PLATEN SIZE(WxH) | MM | 260X330 |
| MAX MOULD SIZE(WxH) | MM | 300x330 |
| MOLD THICKNESS | MM | 125-220 |
| EXTRUDER UNIT | ||
| SCREW DIAMETER | MM | 55 |
| SCREW L/D RATIO | L/D | 25 |
| MELTING CAPACITY | KG/HR | 45 |
| BARREL HEATING POWER | KW | 12 |
| NUMBER OF HEATING ZONE | ZONE | 3 |
| EXTRUDER MOTOR RATED POWER | KW | 11 |
| DIE HEAD | ||
| NUMBER OF DIE HEATING ZONE | ZONE | 2-5 |
| POWER OF DIE HEATING | KW | 6 |
| CENTER DISTANCE OF DOUBLE DIE | MM | 130 |
| CENTER DISTANCE OF THREE DIE | MM | 80 |
| CENTER DISTANCE OF FOUR DIE | MM | 60 |
| CENTER DISTANCE OF SIX DIE | MM | 60 |
| MAX DIE-PIN DIAMETER | MM | 150 |
| POWER | ||
| MAX DRIVE POWER | KW | 18 |
| TOTAL POWER | KW | 32 |
| FAN POWER OF SCREW | KW | 2.4 |
| AIR PRESSURE | MPA | 0.6 |
| AIR CONSUMPTION | M3/MIN | 0.4 |
| AVERAGE ENERGY CONSUMPTION | KW | 13 |
Our products are sold all over the world, you can rest assured.
