PE Plastic Detergent Bottle Blow Molding Machine 2 Heads Fully Automatic

PE Plastic Detergent Bottle Blow Molding Machine 2 Heads Fully Automatic

  • High Light

    shuangli eva detergent bottle blow molding machines

    ,

    eva detergent bottle blow molding machines shuangli

    ,

    ISO eva detergent bottle blow molding machine

  • Material
    PE,PP,EVA,ABS,PS
  • Max Capacity
    5L
  • Product
    Plastic Detergent Bottle
  • Clamping Type
    Toggle System
  • Die Head
    2 Heads
  • Station
    Double Station
  • Place of Origin
    CHINA
  • Brand Name
    SHUANGLI
  • Certification
    ISO, CE
  • Model Number
    SLBU-65
  • Minimum Order Quantity
    1 SET
  • Price
    Price negotiation.
  • Packaging Details
    Standard export package
  • Delivery Time
    20 woking day
  • Payment Terms
    L/C, T/T
  • Supply Ability
    100 Set per month

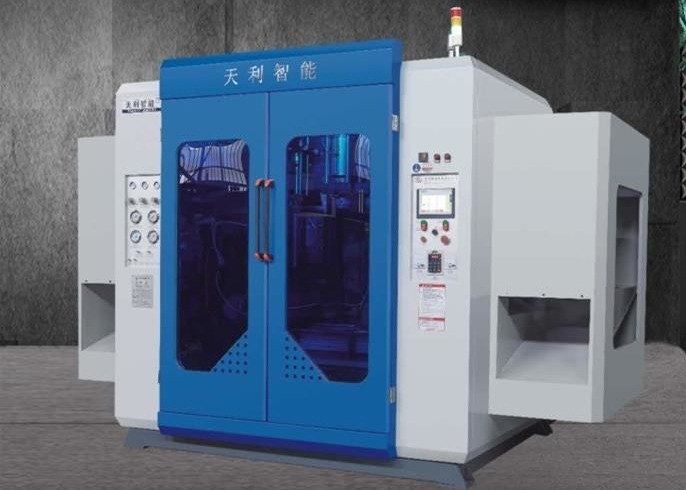

PE Plastic Detergent Bottle Blow Molding Machine 2 Heads Fully Automatic

High Speed 2 Die Heads Blow Molding Machine for Plastic Detergent Bottle with View Stripe Line​



SLBU series:

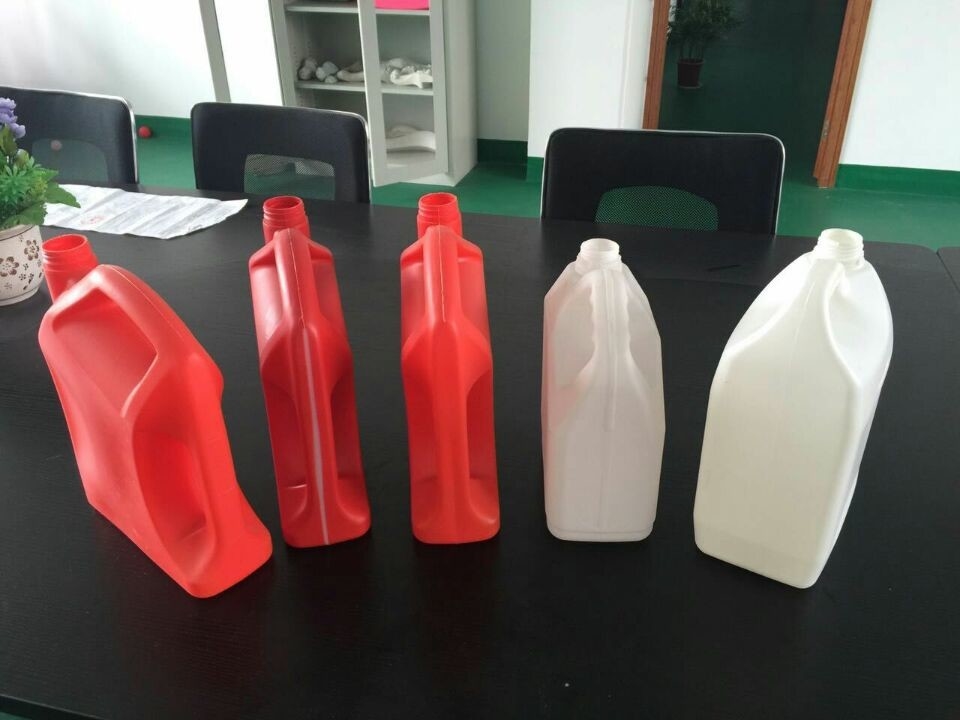

1: this machine is suitable for the production of 200ML- 5L plastic hollow products, the use of curved elbow lock system, low energy consumption, the center of the lock, the lock force, speed faster, run more smoothly  for 2 die head for plastic detergent bottle.



2: Check if the high pressure gas source, low pressure gas source, power source and water source are normal.
Check whether each emergency stop switch, safety door switch, and protection device detection switch are normal.
Check if the warming head enters the embryo and the part of the embryo is working properly. If the insert is not in place, the nut of the preform can be adjusted.







SPECIFICATION SLBU-65
MATERIAL   PE,PP,EVA,ABS,PS
MAX CONTAINER CAPACITY L 5
NUMBER OF DIE HEAD SET 1,2,3,4,6,8
OUPUT(DRY CYCLE) PC/HR 1000x2
MACHINE DIMENSION (LxWxH ) MM 4000x2300x2200
TOTAL WEIGHT TON 6.5T
CLAMPING UNIT
CLAMPING FORCE KN 65
PLATEN OPENING STROKE MM 220-520
PLATEN SIZE(WxH) MM 400x430
MAX MOULD SIZE(WxH) MM 460x430
MOLD THICKNESS MM 255-280
EXTRUDER UNIT
SCREW DIAMETER MM 65
SCREW L/D RATIO L/D 25
MELTING CAPACITY KG/HR 70
BARREL HEATING POWER KW 15
NUMBER OF HEATING ZONE ZONE 3
EXTRUDER MOTOR RATED POWER KW 15
DIE HEAD
NUMBER OF DIE HEATING ZONE ZONE 2-5
POWER OF DIE HEATING KW 6
CENTER DISTANCE OF DOUBLE DIE MM 130
CENTER DISTANCE OF THREE DIE MM 110
CENTER DISTANCE OF FOUR DIE MM 100
CENTER DISTANCE OF SIX DIE MM 80
MAX DIE-PIN DIAMETER MM 180
POWER
MAX DRIVE POWER KW 18
TOTAL POWER KW 50
FAN POWER OF SCREW KW 2.4
AIR PRESSURE MPA 0.6
AIR CONSUMPTION M3/MIN 0.4
AVERAGE ENERGY CONSUMPTION KW 18
