High Speed Accumulator Blow Moulding Machine For Plastic Tool Box
-
High Light
Accumulator Blow Moulding Machine Single Head
,Accumulator Blow Moulding Machine 120L
,Plastic Tool Box Blow Molding Machine
-
MaterialPE,PP ,ABS
-
Max Capacity60L-120L
-
HeadSingle Head Single Station
-

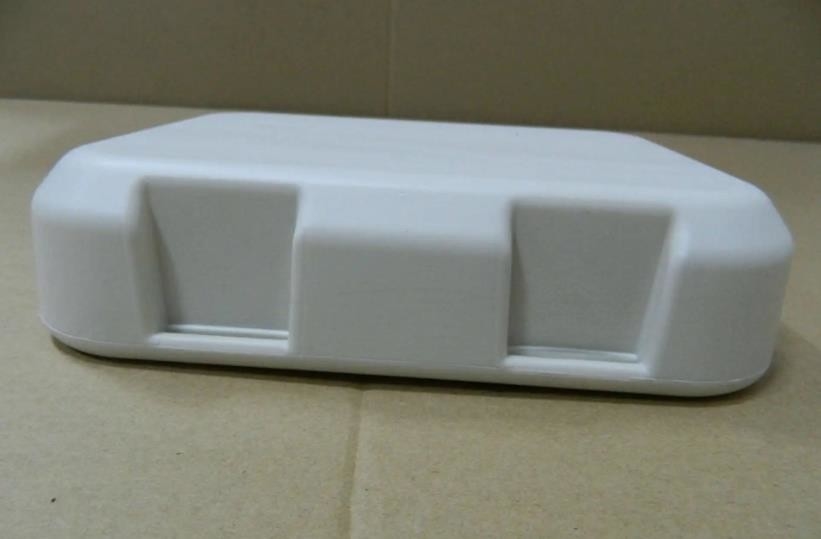

ProductPlastic Tool Box
-
Machine TypeAccumulator Type -tie Bar Type
-
SpeedHigh Speed
-
Place of OriginCHINA
-
Brand NameSHUANGLI
-
CertificationISO, CE
-
Model NumberSLBC
-
Minimum Order Quantity1 SET
-
PricePrice negotiation.
-
Packaging DetailsStandard export package
-
Delivery Time20 woking day
-
Payment TermsL/C, T/T
-
Supply Ability100 Set per month
High Speed Accumulator Blow Moulding Machine For Plastic Tool Box
High Speed Single Head Single Station Blow Moulding Machine For Plastic Tool Box
SLBC series: (German model)

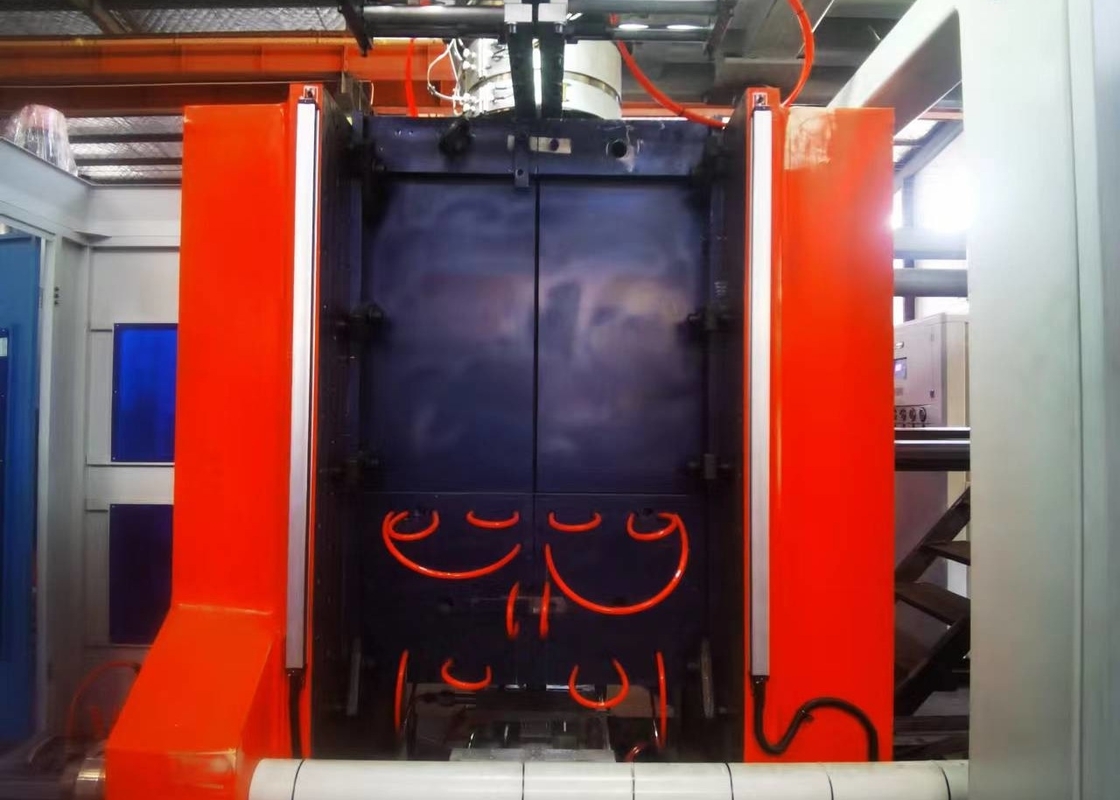

1:Fully Automatic Blow Moulding Machine, large opening stroke, central locking, locking force equilibrium, no deformation. All parts of the machine is made by advanced numerical control equipment with high precision.

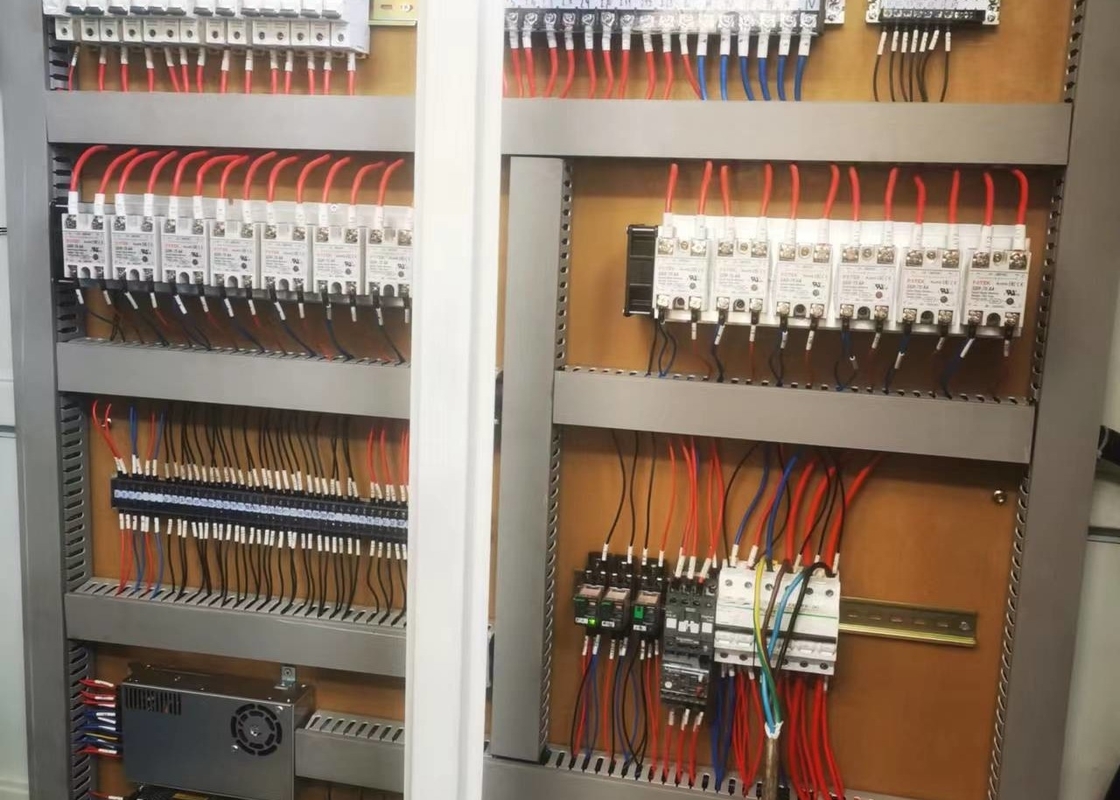

2:Fully Automatic Blow Moulding Machine, The electronic control system consists of operation panel, touch display screen, temperature control module, PLC programmable controller, analog quantity, proportional board, contactor, regulated power supply, automatic air switch, intermediate relay, twisted material inverter, proximity switch, stroke Switch, cutter transformer, twisting motor, oil pump motor and so on.
3.Operation panel
The operation panel is equipped with a power key switch, a touch display, an alarm, a cutter heat, a cycle start, an emergency stop, a twisted motor switch, a twister motor speed switch.
Power key switch: It is the control power for turning the machine on and off.
Touch display: It is to adjust the process time, adjust the action pressure, heating temperature control, function selection, operation status monitoring, manual control, automatic control and so on.
| SPECIFICATION | SLBC-120 | |
| MATERIAL | PE,PP,EVA,ABS,PS | |
| MAX CONTAINER CAPACITY | L | 160 |
| OUPUT(DRY CYCLE) | PC/HR | 300 |
| MACHINE DIMENSION (LxWxH ) | MM | 7500x4200x6200 |
| TOTAL WEIGHT | TON | 22T |
| CLAMPING UNIT | ||
| CLAMPING FORCE | KN | 800 |
| PLATEN OPENING STROKE | MM | 600-1400 |
| PLATEN SIZE(WxH) | MM | 1400x1600 |
| MAX MOULD SIZE(WxH) | MM | 1200x1900 |
| MOLD THICKNESS | MM | 610-880 |
| EXTRUDER UNIT | ||
| SCREW DIAMETER | MM | 120 |
| SCREW L/D RATIO | L/D | 25 |
| MELTING CAPACITY | KG/HR | 280 |
| BARREL HEATING POWER | KW | 42 |
| NUMBER OF HEATING ZONE | ZONE | 6 |
| EXTRUDER MOTOR RATED POWER | KW | 90 |
| DIE HEAD | ||
| NUMBER OF DIE HEATING ZONE | ZONE | 5 |
| POWER OF DIE HEATING | KW | 38 |
| MAX DIE-PIN DIAMETER | MM | 500 |
| POWER | ||
| MAX DRIVE POWER | KW | 125 |
| TOTAL POWER | KW | 180 |
| FAN POWER OF SCREW | KW | 4.8 |
| AIR PRESSURE | MPA | 0.8-1.2 |
| AIR CONSUMPTION | M3/MIN | 0.8 |
| AVERAGE ENERGY CONSUMPTION | KW | 72 |
| ACCUMULATOR CAPACITY | L | 30 |
